Conxnect offers a comprehensive range of RFID tags optimized for various applications and environments. Our tags are designed to deliver exceptional performance, durability, and read range in challenging industrial settings.

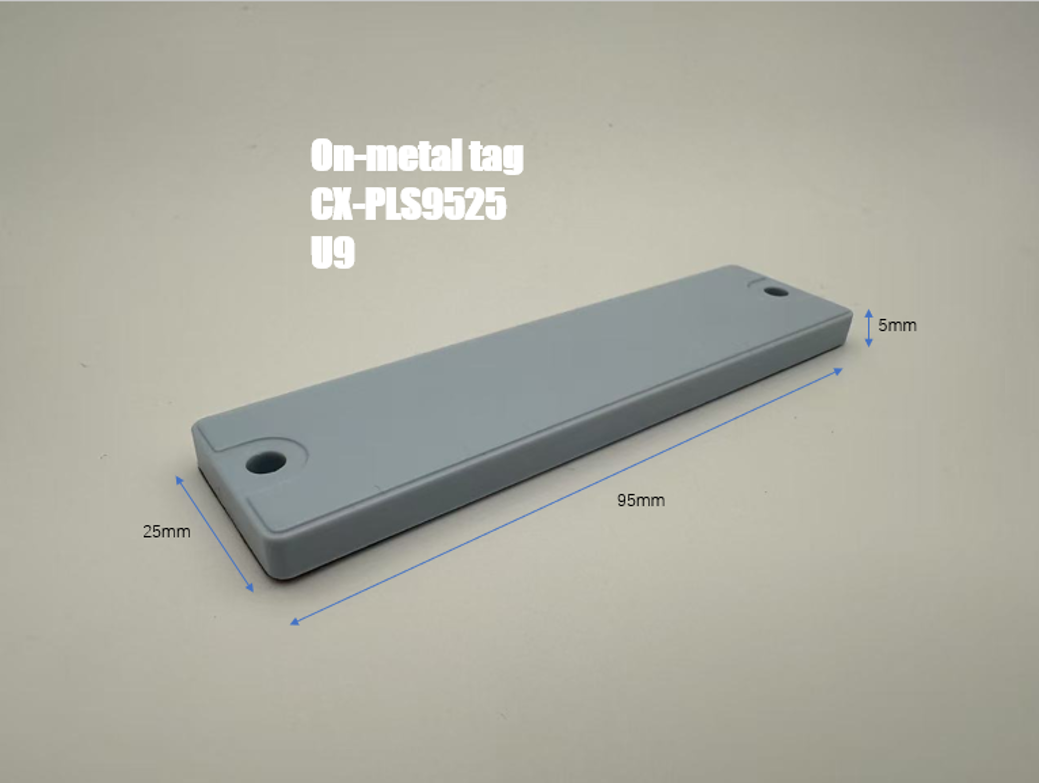

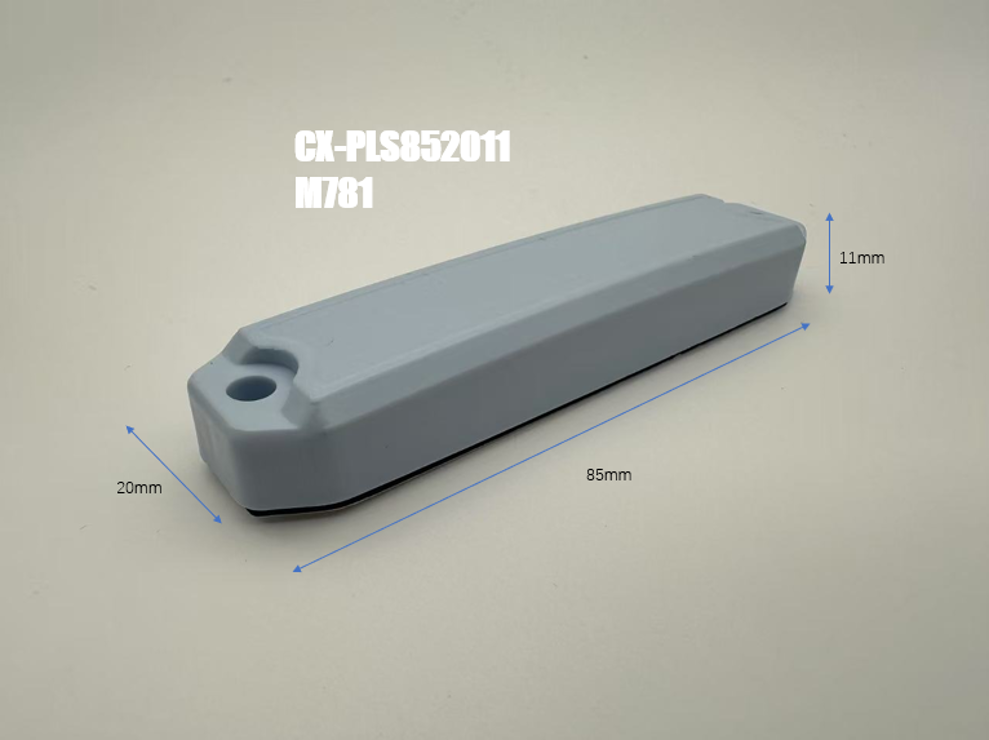

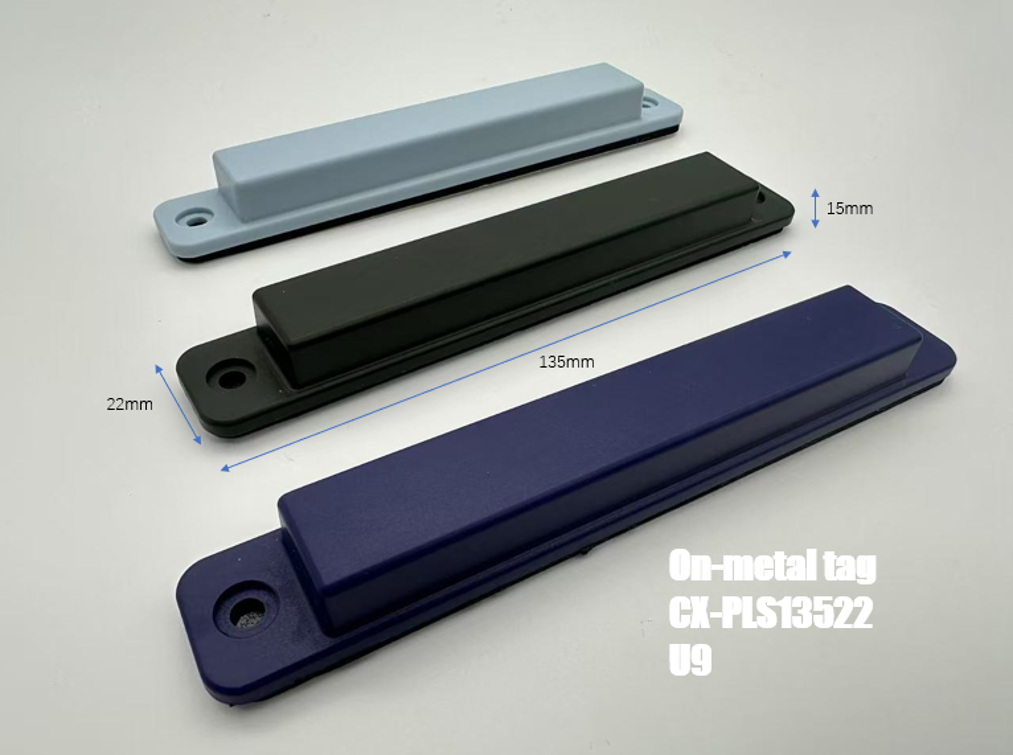

Engineered specifically for metal surfaces and assets, our on-metal RFID tags deliver superior read range and reliable performance even in challenging industrial environments.
Read Range on Metal: 5-10m with fixed reader
IP Rating: IP 67
Case Material: ABS (indoor use) / Weather-resistant polymer (outdoor use)
Read Range on Metal: 8-10m (handheld – fixed reader)
IP Rating: IP 67
Case Material: ABS (indoor use) / Weather-resistant polymer (outdoor use)

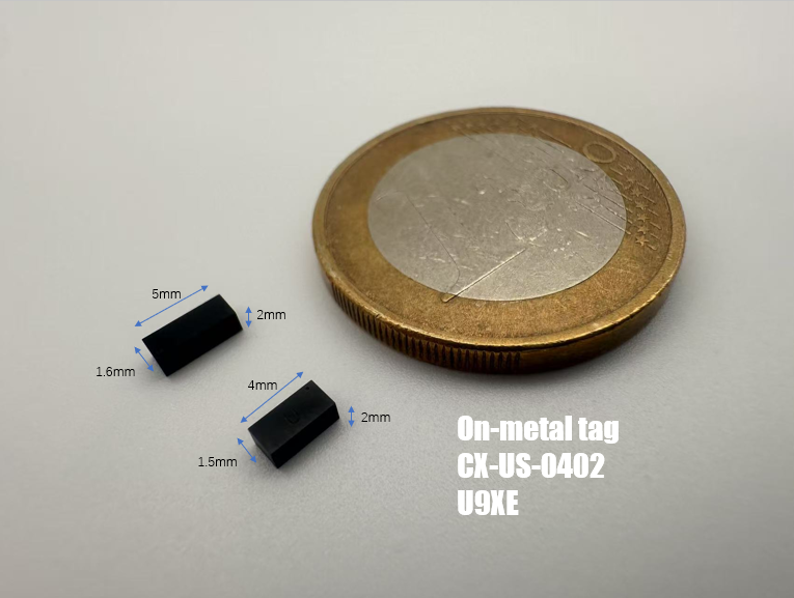

Read Range on Metal: 4-14cm on metal surface, 50cm on metal tools (using handheld with Impinj E410 RF module, 33 dBm power +4dBi antenna gain)
IP Rating: IP 68
Case Material: Chip level packaging material
Installation: Strong adhesive (not included), can also be applied to laundry tag and to all form of antenna by coupling

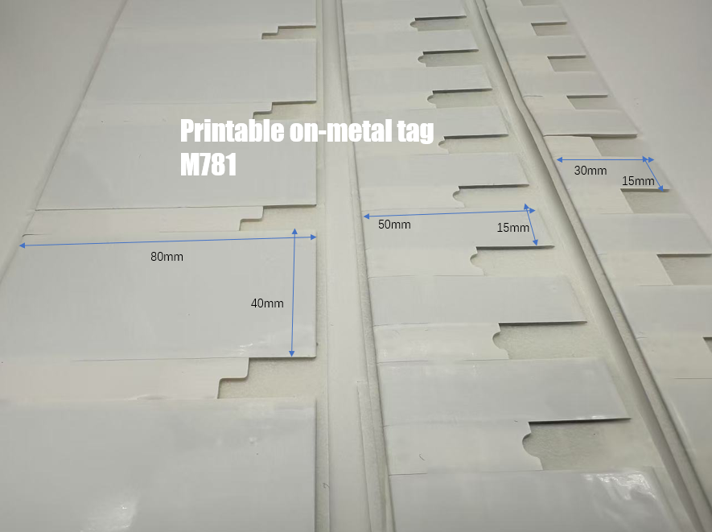

Read Range on Metal: 8 meters
Read Range off Metal: 8 meters on plastic, glass, carton
IP Rating: IP 68/curved
Case Material: White PET surface, 3M adhesive
Installation: Direct attach with 3M adhesive, can be applied to curved surfaces with 20mm diameter
Read Range on Metal: Up to 6m (4W EIRP, Alien 9900 reader)
IP Rating: IP 65
Case Material: ABS + ASA
Installation: Screw, strong glue, or 3M 300LSE tape as an option at extra cost
Operating Temperature: -25°C to +70°C
Storage Temperature: -40°C to +70°C
Read Range on Metal: 8-10 meter (handheld - fixed reader)
Read Range off Metal: 20-25 meter (handheld - fixed reader)
IP Rating: IP 67
Case Material: ABS (indoor use) / against extreme weather polymer (outdoor use)
Installation: Screw, strong glue (not included), or 3M 300LSE tape as an option at extra cost
Operating Temperature: -25°C to +70°C
Storage Temperature: -30°C to +70°C
Weight: 12g
Our off-metal RFID tags are designed for non-metallic surfaces and provide excellent read range for tracking applications in retail, logistics, and asset management.

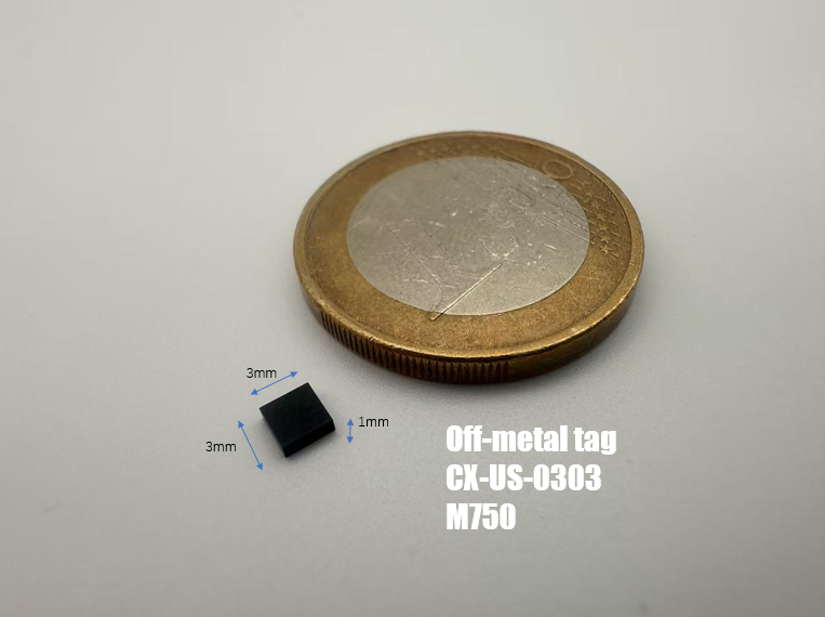

Read Range off Metal: 13cm/5cm with handheld reader
IP Rating: IP 68
Case Material: Chip-level packaging material

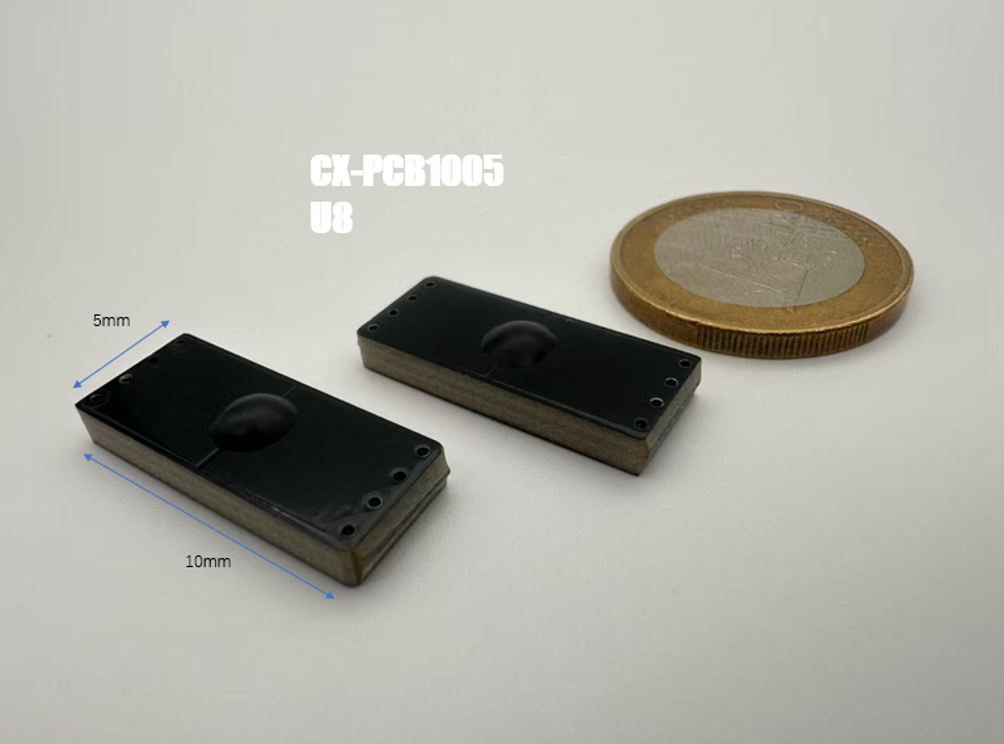

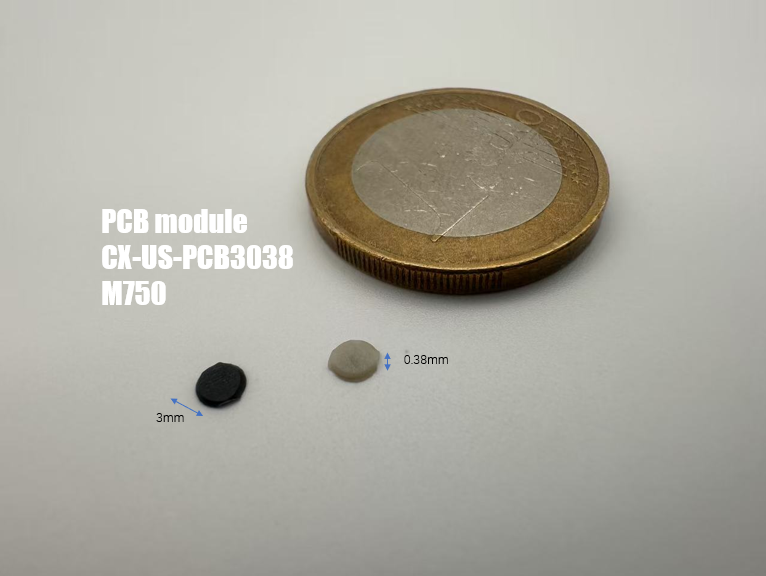

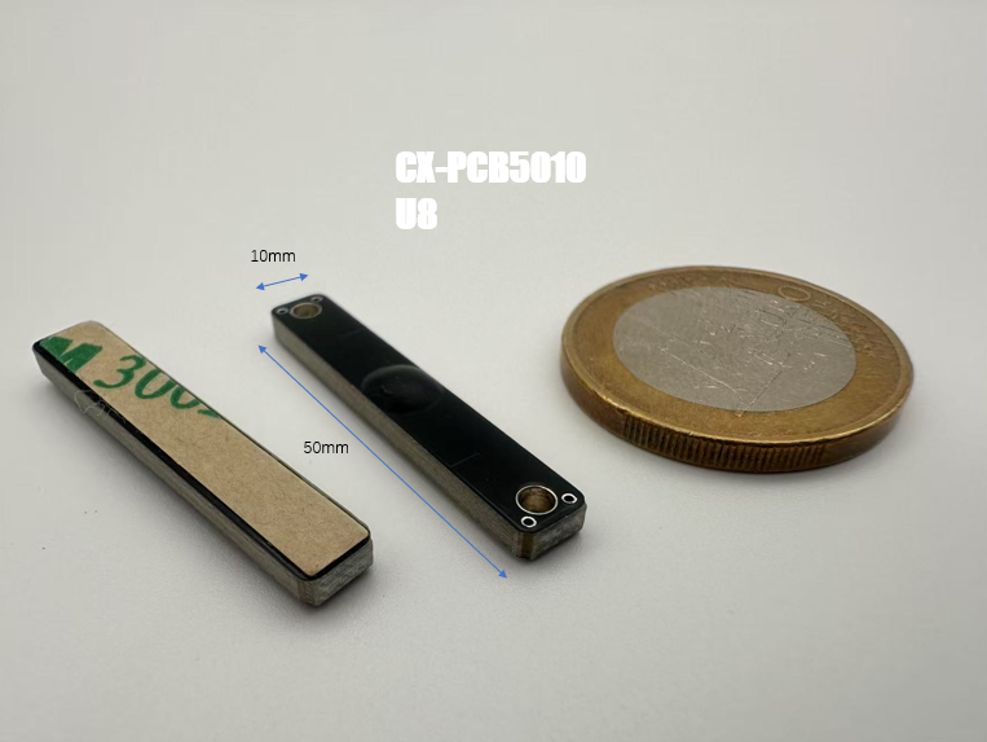

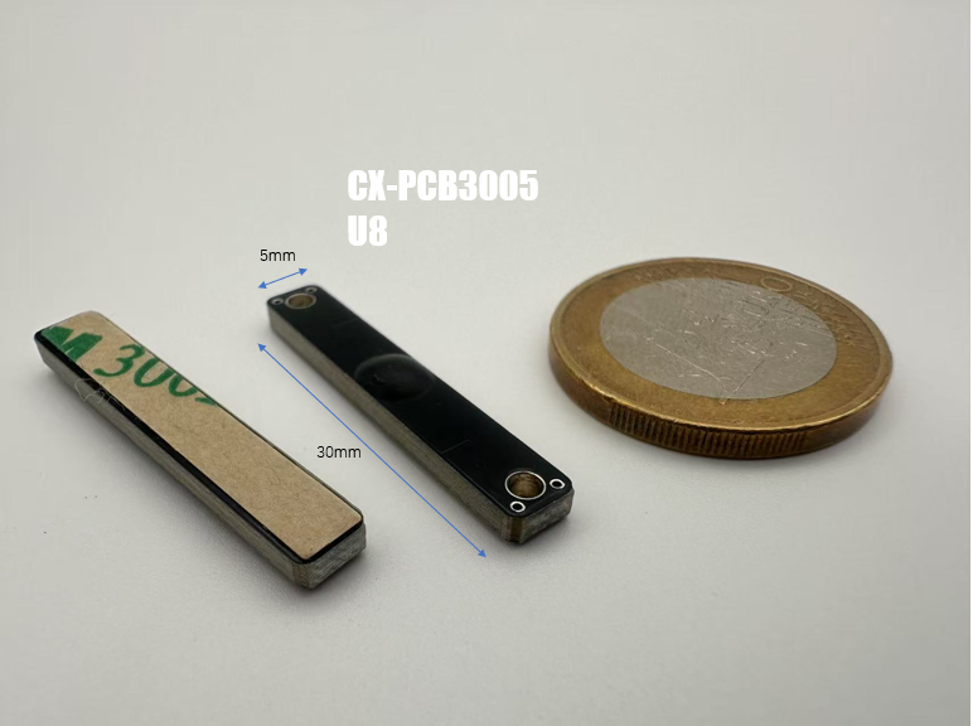

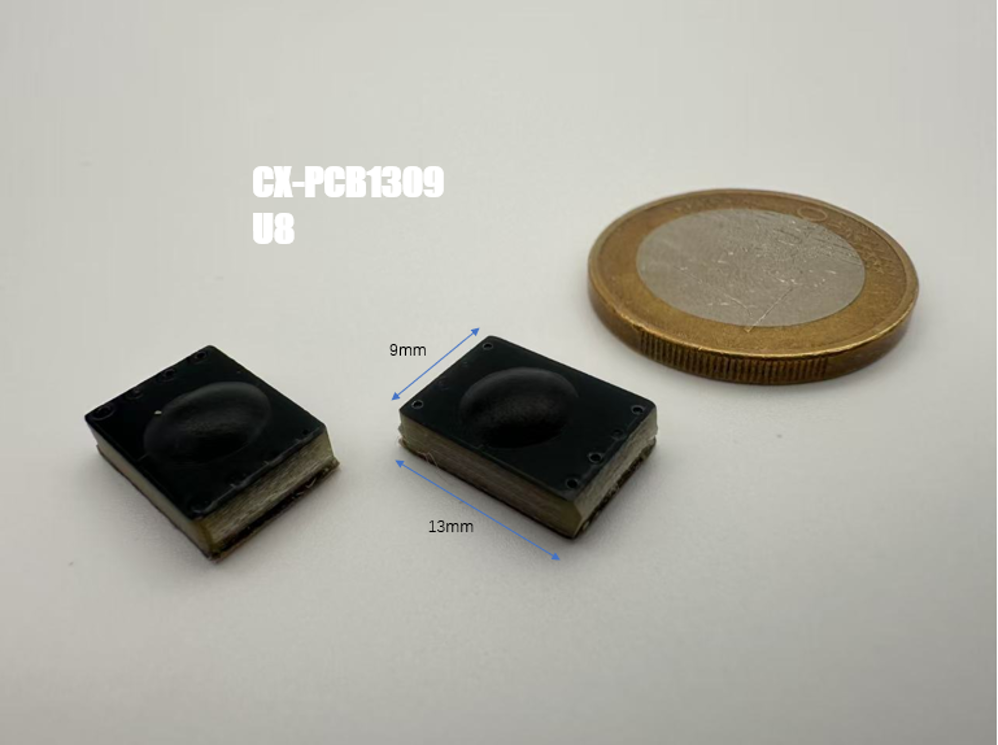

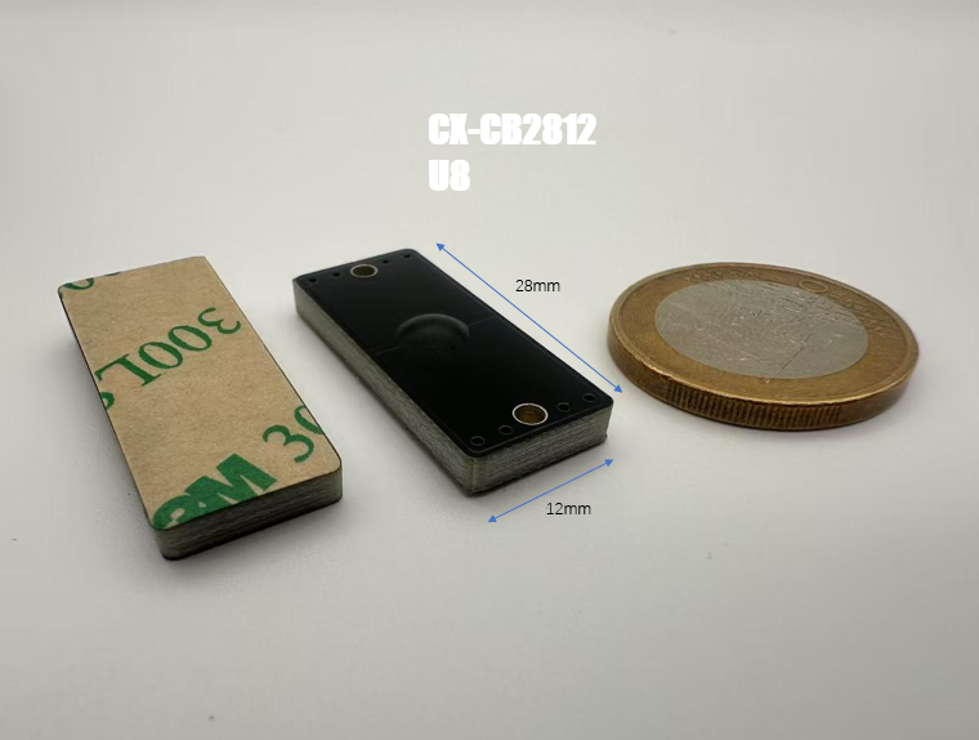

Our PCB module RFID tags provide versatile integration options for embedded solutions and OEM applications.
Installation: Applied to laundry tag and antenna coupling
IP Rating: IP 65
Case Material: Chip module by PCB
Read Range on Metal: 1.5m (handheld reader, R2000 reader module, 33dbi power, 4dBi reader antenna)
IP Rating: IP 65
Case Material: FR4 PCB
Installation: Strong adhesive (not included)
Operating Temperature: -25°C to +85°C
Read Range on Metal: 2m (handheld reader, R2000 reader module, 33dbi power, 4dBi reader antenna)
IP Rating: IP 65
Case Material: FR4 PCB
Installation: Industrial adhesive (not included), 3M 300LSE double sided adhesive as an option at extra cost
Operating Temperature: -25°C to +85°C
Read Range on Metal: 4.5m (handheld reader, impinj E710 reader module, 31dbi power, 4dBi reader antenna)
IP Rating: IP 65
Case Material: FR4 PCB
Installation: 3M 300LSE double sided adhesive included, Strong adhesive (not included)
Operating Temperature: -25°C to +85°C
Read Range on Metal: 4.5m (handheld reader, impinj E710 reader module, 31dbi power, 4dBi reader antenna)
IP Rating: IP 65
Case Material: FR4 PCB
Installation: Strong adhesive (not included), 3M 300LSE double sided adhesive as an option at extra cost
Operating Temperature: -25°C to +85°C
Read Range on Metal: 4.5m (2W ERP)
IP Rating: IP 65
Installation: 3M 300LSE double sided adhesive (not included)

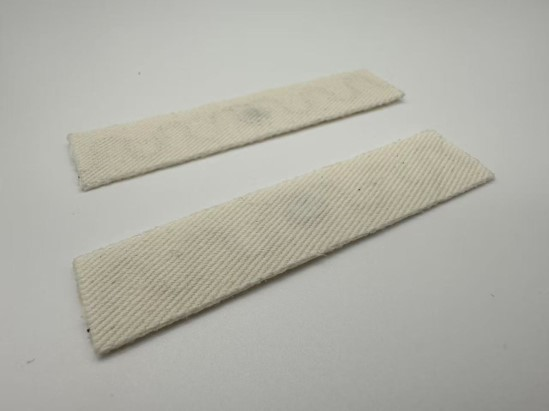

Our laundry RFID tags are specifically designed to withstand harsh washing processes, high temperatures, and industrial cleaning agents.
Read Range: Up to 13m (ERP=2W), 8m with handheld
IP Rating: IP 65
Washing Capability: 90°C washing, 180°C pre-drying, 180°C ironing, 135°C sterilization

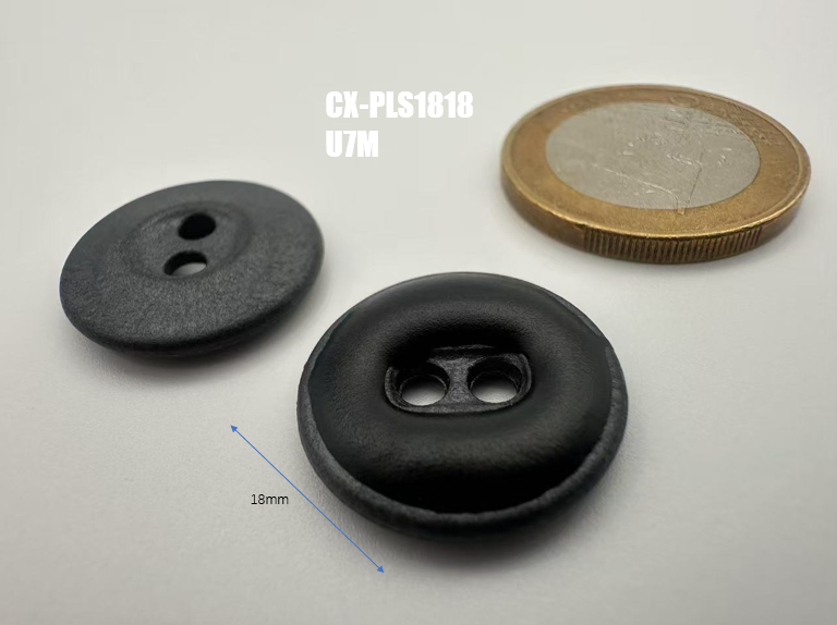

Read Range off Metal: 1-1.5 meters
IP Rating: IP 67
Case Material: PPS
Installation: Sewing

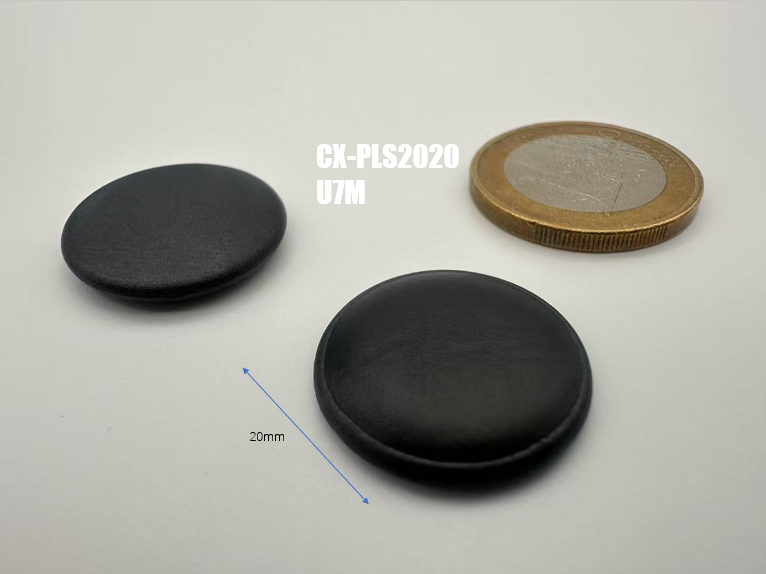

Read Range off Metal: 1-1.5 meters
IP Rating: IP 67
Case Material: PPS
Installation: Sewn into pocket

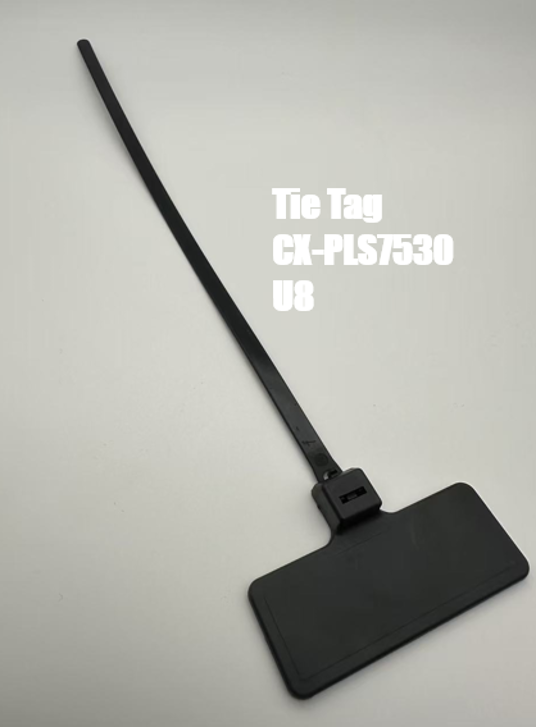

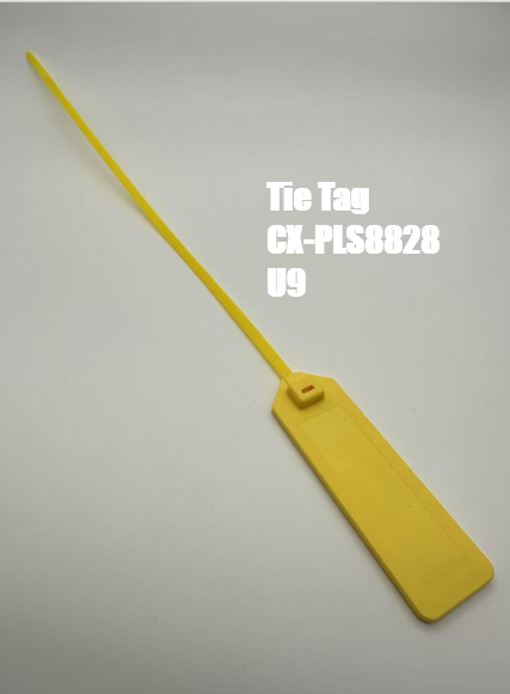

Our tie RFID tags provide secure and flexible attachment options for luggage, equipment, and inventory tracking.
Read Range on Metal: 0.1-5m
IP Rating: IP 65
Case Material: ABS + Nylon
Available Colors: Red, blue, yellow, green, black, white
Read Range on Metal: 1-5m
IP Rating: IP 65
Case Material: ABS + Nylon
Available Colors: Red, blue, yellow, green, black, white
We offer a range of specialized RFID tags designed for unique applications and environments.

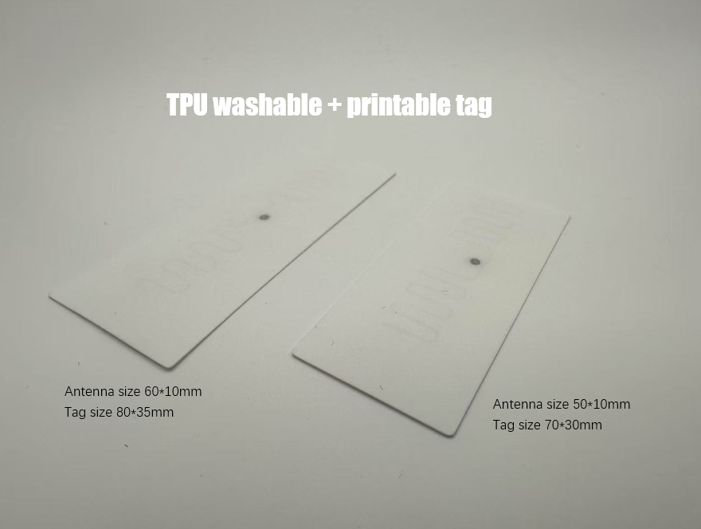

Read Range off Metal: 10-12 meters (proved in testing chamber)
IP Rating: IP 65
Case Material: TPU (white color only)
Installation: By sewing
Contact our team today to discuss how our RFID solutions can be customized to meet your specific business requirements.
